Based on information received from the CGM every 5 minutes, the insulin pump makes automatic adjustments and corrections to your insulin delivery.‡
MINIMEDTM 780G SYSTEM
Life with diabetes just got easier for people with type 1 diabetes
Experience the #1 insulin pump in preventing highs and lows based on user satisfaction.1-3
Now available with the 15-day InstinctTM sensor, made by Abbott.
More time in range2**, day and night.

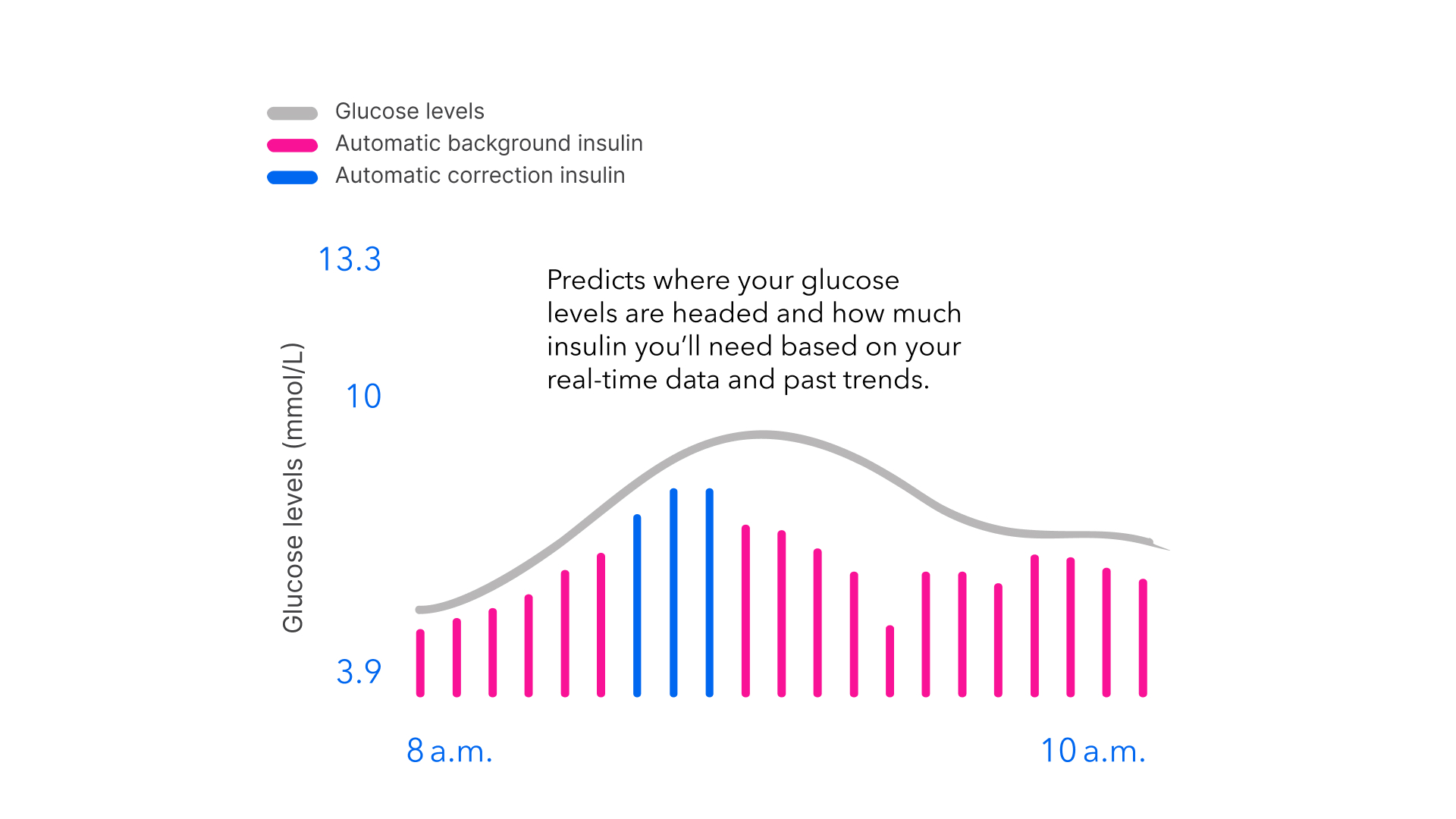

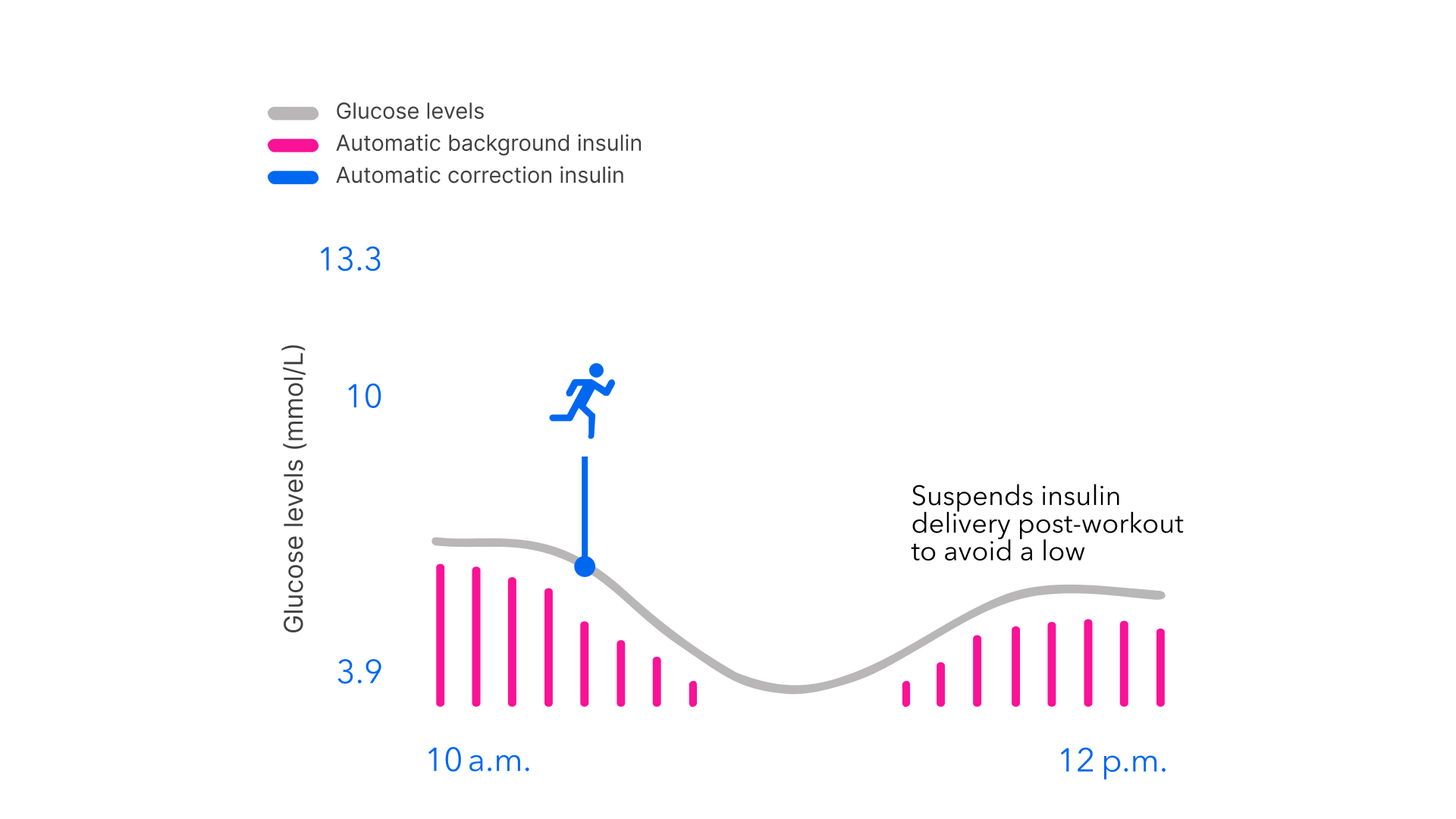

The MiniMedTM 780G system automatically^ adjusts insulin delivery and corrects glucose levels every 5 minutes 24/7, requiring no finger pricks^,^^
Time in range3
Real world data shows the
Overnight average
Time in Range4,#,∞
MiniMedTM 780G system
Now available for children with diabetes ages 2 years old+ and women during pregnancy.
Considering an automated insulin pump system?
When choosing an insulin pump, make sure it meets your needs and delivers the best results. Key considerations should include:
Time in Range (TIR):
The percentage of time your blood glucose levels are within the target range. Higher TIR reduces complications like eye damage (retinopathy), heart and kidney disease.1
Burden reduction:
Achieve more while doing less. Your pump should help you to stay in range even when carb counting isn't exact.
Life is really better with my new pump.
Talha
6 years old living with type 1 Diabetes using MiniMedTM 780G system.
Now available for children with diabetes 2 years old and above.
Things you should know about the MiniMed 780GTM
Advanced algorithm
The algorithm adapts to you providing better time in range than other systems.7
Wear what you want
Feel free to hide or show the pump depending on your outfit choice.
No daily charging
Unlike other pumps, the 780G doesn't need daily charging.
Freedom to disconnect**
Disconnect for up to an hour for activities.
Fewer injections
The system requires as few as 6 device insertions a month.
Trusted across Europe
Used by hundreds of thousands, MiniMedTM 780G is Europe's most popular automated insulin pump.
Less carb counting

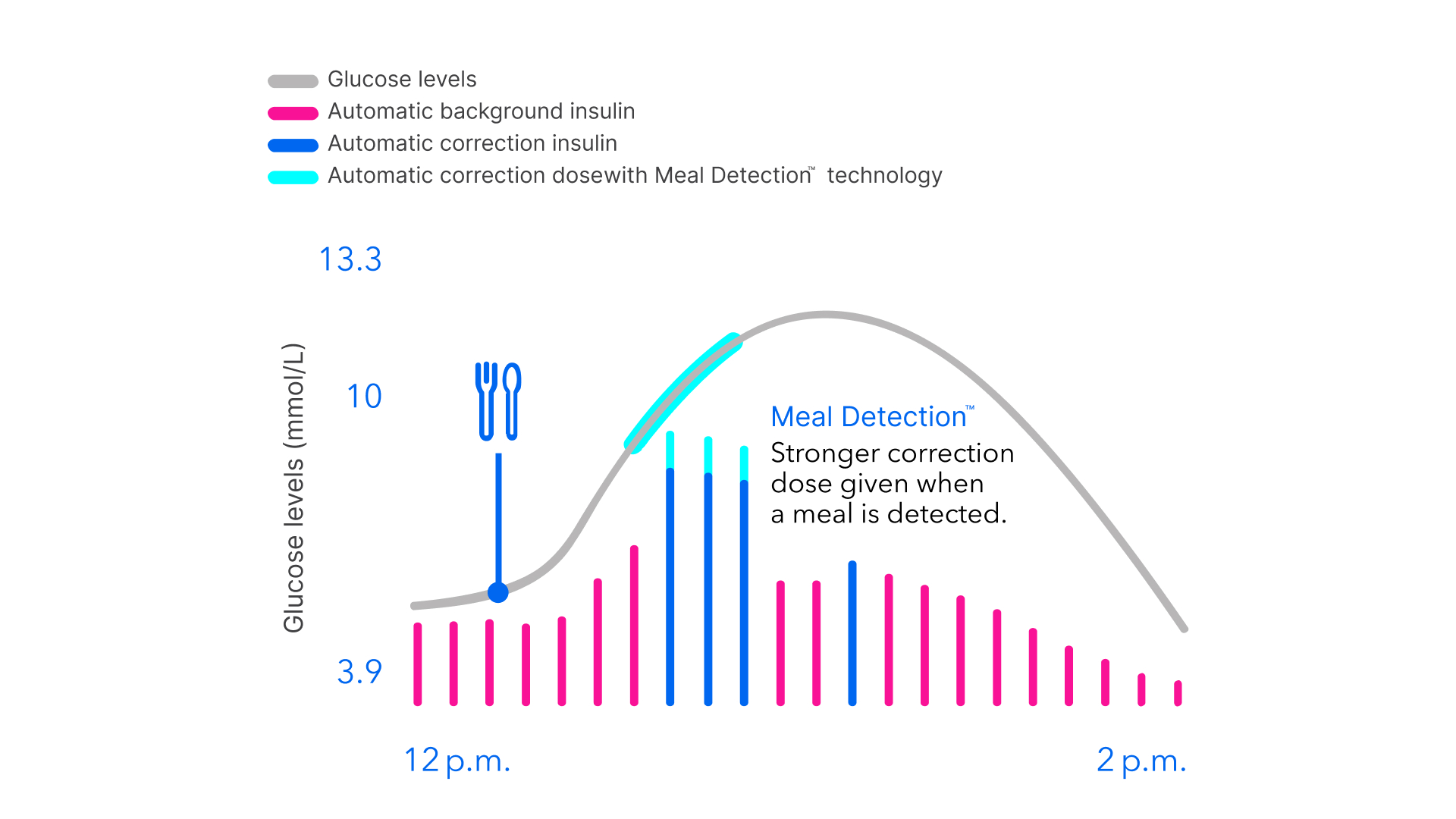

The only system with Meal DetectionTM Technology that automatically^ delivers correction doses every 5 minutes.
Waterproof design**
A tough, easy-to-use pump.
Three simple components from one company
MiniMedTM 780G insulin pump
MiniMedTM 780G insulin pump
Continuous glucose monitor (CGM)
Continuous glucose monitor (CGM)
Sensors measure and send glucose levels to the pump. We have all-in-one disposable CGM options.
Infusion set
Infusion set
Allows for continuous and discreet delivery of insulin through a thin, flexible tube. Get up to 7 days of wear time with the ExtendedTM infusion set.
Compare MiniMed 780G system
It’s easy to see the difference between our system and our competitors.
|
|
MiniMedTM 780G system |
Omnipod® |
Ypsomed |
Tandem T-Slim |
|---|---|---|---|---|
|
Time in range |
80%7 |
67.7%8 |
72.6%9 |
71.1%10 |
|
Meal DetectionTM technology |
|
|
|
|
|
Works without a smartphone/controller |
|
|
|
|
Higher TIR reduces complications like eye damage (retinopathy), heart and kidney disease5
I can just eat, maybe make a wrong calculation but it will fix it by itself.
Yonatan
MiniMedTM 780G user

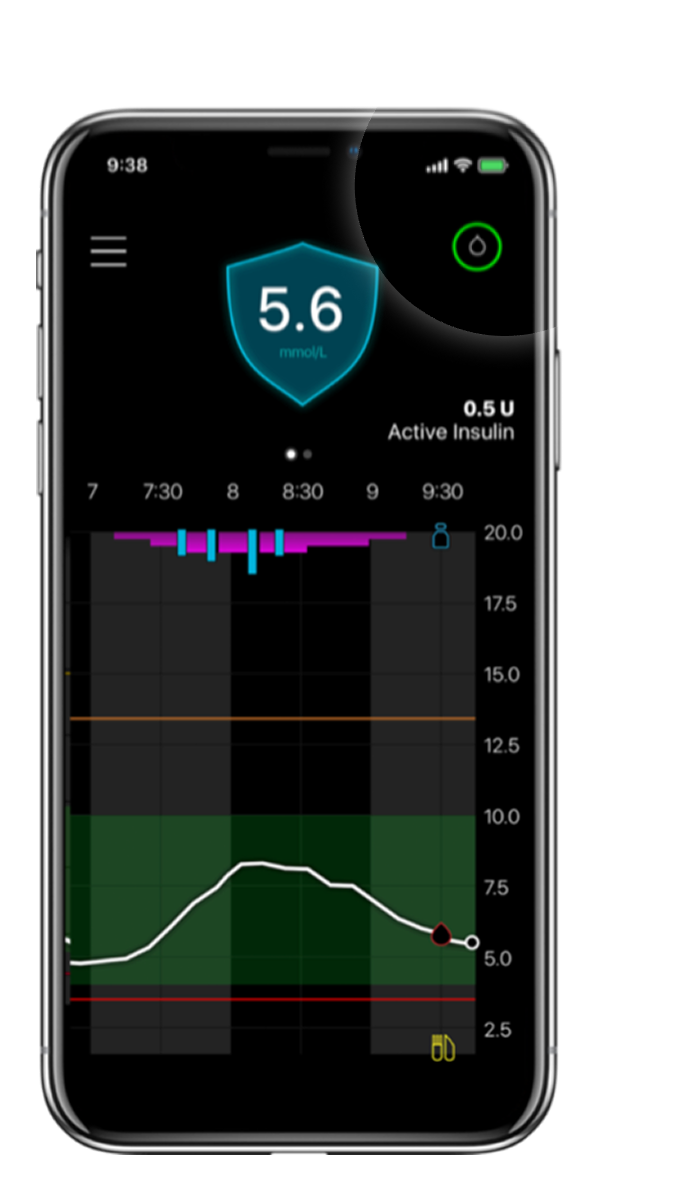

MiniMedTM Mobile app
Your glucose levels and pump information can now be viewed on a smartphone, allowing you to easily track values and get notified on your phone if you’re going high or low.
Available to download at no cost for most iOS and Android smartphones.
Download the App now:
CareLinkTM Connect App
You can choose to share your real-time diabetes data with your care partners.
Refer to CareLinkTM Connect app. Instructions for Use. CareLinkTM Connect app requires internet connection
Download the App now:
Innovation that transforms lives
We are here to support you on your journey to manage diabetes with ease and confidence.
StartrightSM programme
What you need to know about your new device
Support & training
The best trainers to master your device and 24/7 helpline.
WeCare app
Educational content, personalised data and instant help.
Technical Specifications
Waterproof capabilities
The pump is waterproof at the time of manufacture and when the reservoir and tubing are properly inserted. It is protected against the effects of being underwater to a depth of up to 2.4 meters (8 feet) for up to 30 minutes.
Environmental Conditions
The MiniMedTM 780G insulin pump system is designed to withstand most conditions encountered in your daily life. The system storage temperature range is from 10-45ºC. Air pressure range is from 700 hPa to 1060 hPa (10.2 psi to 15.4 psi).
Attitude Range
- Pump operating range is from 10.2 psiA (70.33 kPa) to 15.4 psiA (106.18 kPa)
- Storage range is from 7.2 psiA (49.64 kPa) to 15.4 psiA (106.18 kPa)
Insulin type
Rapid-acting U100 insulin (HumalogR and NovoRapidR) that has been prescribed by a healthcare professional.
Bolus delivery
Bolus Speeds
- Standard : 1.5 units/minute
- Quick : 15 units/minute
Programming Increments
- 0.025 units
- 0.05 units
- 0.1 units
Max bolus 25 units
Basal Rate Delivery
0 to 35 units per hour.
Screen
- Colour screen with auto-brightness
- Backlight time out 15 seconds (default), 30 seconds, one minute, three minutes
Battery & Power
The pump requires one new AA (1.5V) battery. For best results, use a new AA lithium (FR6) battery. The pump also accepts an AA alkaline (LR6) or a fully charged AA NiMH (HR6) nickel-metal hydride rechargeable battery.
Pump memory
At any time you can review 35 days of pump history.
Size
The pump dimensions in centimeters are no greater than 10.2 length x 5.8 width x 2.8 depth. The pump dimensions in inches are no greater than 4.0 length x 2.3 width x 1.1 depth. The mass of the insulin pump without battery and consumables is less than 117 grams.
Warranty
- Insulin pump : 4 years
Compatible products
Frequently asked questions
Who is this insulin pump recommended for?
Who is this insulin pump recommended for?
The MiniMedTM 780G system is approved for people with type 1 diabetes, age 2 and above with a Total Daily Dose ≥ 6 units. If you would like a stand-alone CGM and not an insulin pump, consider looking into Smart MDI System.
Does the system communicate with my smartphone?
Does the system communicate with my smartphone?
Yes. With the MiniMedTM 780G system you can easily track your glucose levels and view notifications and alerts on your smartphone. Up to 5 care partners can be invited to download the CareLinkTM Connect app and view your real-time glucose values on their phones. Available to download at no cost for most iOS and Android smartphones. To see if your smartphone is compatible, see this reference chart.
What’s so unique about the MiniMedTM 780G system?
What’s so unique about the MiniMedTM 780G system?
The MiniMedTM 780G system automatically adjust insulin delivery to your needs for an easier way to stabilise glucose levels1,2,3. It features an advanced level of automation for diabetes management, known as SmartGuardTM technology. If your glucose levels are trending high, it gives you more insulin. If they are trending low, it gives you less or no insulin at all. Now it can even correct high glucose levels in cases where carb counts aren’t exact.
How is this system different than using a pump by itself?
How is this system different than using a pump by itself?
The MiniMedTM 780G system, automatically adjusts delivery of basal insulin based on Continuous Glucose Monitoring (CGM) values. This means that the pump gets glucose readings from the GuardianTM Sensor 4 and transmitter automatically, and then delivers a variable rate of insulin, 24 hours a day based on your personal needs. This integrated system – meaning having a pump and a CGM that speak to one another – can help to stabilise your glucose levels and reduce both high and low glucose levels.
Do I still need to check my blood glucose with finger prick or give myself injections?
Do I still need to check my blood glucose with finger prick or give myself injections?
When you use an insulin pump, you have a dramatic reduction in injections – by up to 90%.* The infusion set that attaches to your body contains a small, flexible plastic cannula that is inserted to be placed under the skin and changed every 2-3 days. A CGM glucose sensor is inserted every 7 days. Using the SmartGuardTM feature does not completely replace finger pricks but you will likely check your BG less frequently. Sensor readings are taken from your interstitial fluid (fluid surrounding the cells in your tissue) and not your blood, you still need to test using a BG meter. With GuardianTM 4 sensor, Simplera Sync sensor and Instinct sensor, a blood glucose reading is needed when you first enter SmartGuardTM feature, otherwise no finger pricks are required. If glucose alerts and CGM readings do not match your symptoms, use a blood glucose meter to make diabetes treatment decisions. It is important to know that all blood glucose values entered & accepted are used for calibration. Refer to System User Guide - SmartGuardTM feature. Some user interaction required.
*Assumes four injections per day for 30 days and one infusion set change every two to three days.
Is this pump waterproof?
Is this pump waterproof?
*At the time of manufacture and when the reservoir and tubing are properly inserted, your pump is waterproof. It is protected against the effects of being underwater to a depth up to 2.4 meters (8 feet) for up to 30 minutes. Although it’s designed to be waterproof, drops and bumps that occur over time can make it more vulnerable to damage from water. We recommend removing your pump before swimming or bathing. The sensor and transmitter are water-resistant at 2.4 metres for up to 30 minutes. CGM readings may not be transmitted from the sensor to the pump while in water.
If I’m interested in getting started, what are the next steps?
If I’m interested in getting started, what are the next steps?
- Get started by contacting us so we can have someone follow up with you. We will help answer any questions, discuss out-of-pocket costs, if you plan to self fund sensors.
- Once the system is purchased and shipped, we will work with you to schedule your training. We have a robust technical support team who will help conduct an in-person training. (With the use of CGM and SmartGuardTM tech. You may need a few training sessions.)
- Once you’re trained, we will continue to support you throughout your journey with us. We will provide ongoing educational resources and also offer a dedicated Technical Support team who are available 24/7.
If you are a current customer, contact us to discuss your options for upgrading.
I’m a healthcare professional. Where can I go for more information?
I’m a healthcare professional. Where can I go for more information?
If you are a healthcare professional we encourage you to visit this website.
