Inserting your sensor and connecting the transmitter

Device: MiniMed^TM 630G insulin pump (MMT-1715K)

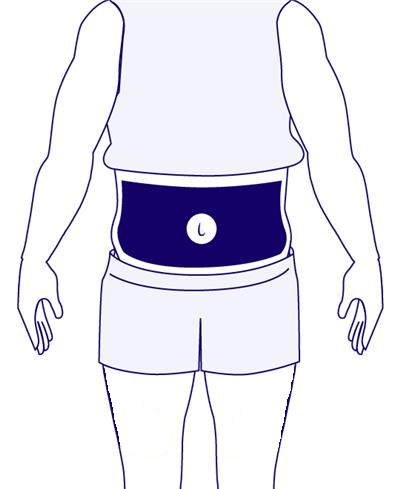

Choose a location for inserting your sensor. Shown here are the best body areas (shaded) for sensor insertion:

Note: Clinical trials of sensor accuracy have been based on sensors inserted in the belly area. Sensor performance may differ when other insertion sites are used.

Avoid inserting the sensor:

• Into the 2-inch (5.0 cm) area around your belly button
• Where your body naturally bends a great deal
• In areas where clothing might cause irritation (for example your beltline)
• Where you have scarred or hardened tissue or stretch marks

For Enlite™ sensor, your sensor should be at least:

• 2 inches (5.0cm) away from your navel
• 1 inch away from your insulin pump infusion site
• 1 inch away from any other insulin needle injection site (syringe, pen)
