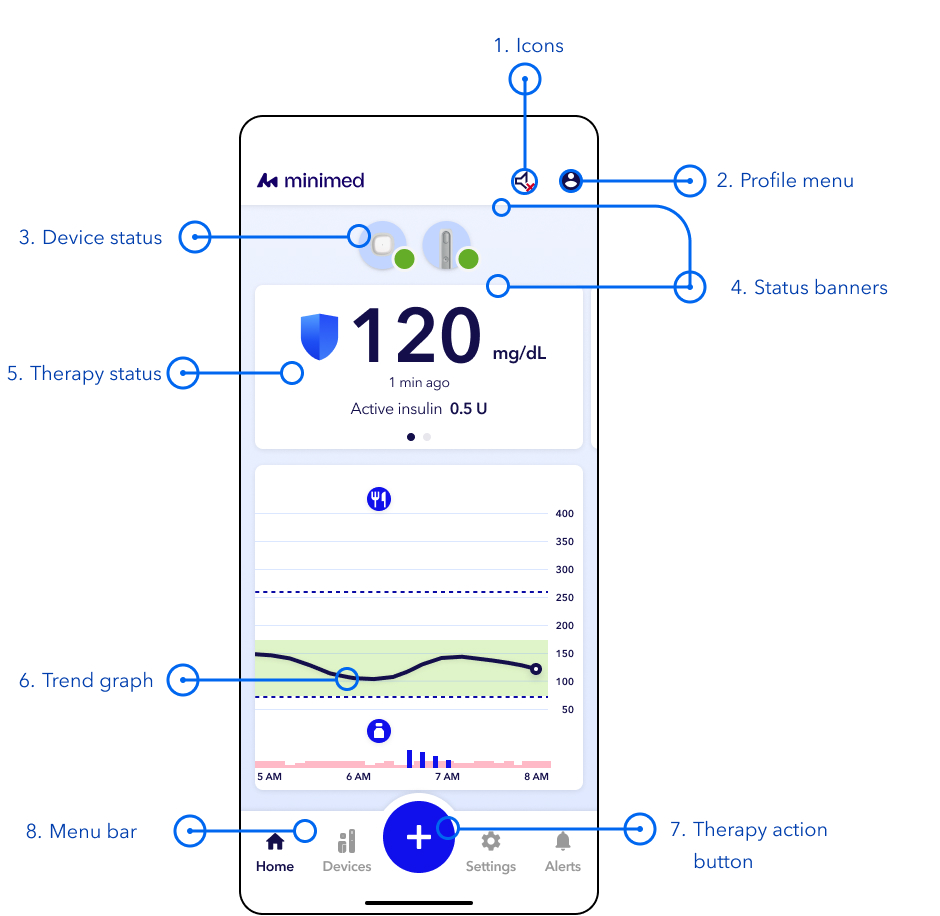

Understanding the MiniMed^TM app Home Screen

Overview

1. Icons – Icons may appear in this location. Tap the icon on the screen to see more details.
   See icon overview
2. Profile menu – View information such as CareLink, Daily history, Summary of therapy and sensor data, and the Help menu.
3. Device Status – Theese following status icons may appear on the device icons. A number in the icon shows how many actions are needed.
4. Status banner –  Banners below the device icons show status information. Banners above the device icons show alerts that still need your response. Tap a banner to see more details and follow the steps if needed.
5. Therapy Status – View your glucose and therapy information and swipe left for details about your Time in Range.
   See more detail
6. Sensor trend graph – View the graph to see your glucose levels over time. You can tap on the icons for more information about events, such as insulin doses and carb entries.
   See more detail
7. Therapy action button – Access therapy actions such as the Bolus calculator, suspend delivery, or log an event.
8. Menu bar – Access your device information, settings, and alert history.
   See more detail

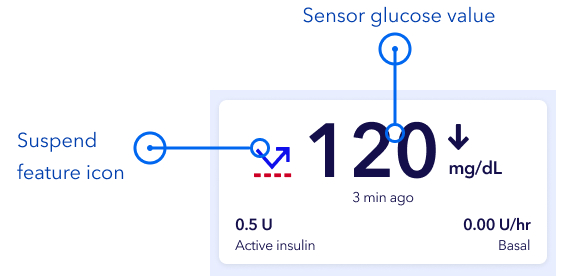

Therapy status

• Sensor glucose value — Displays glucose readings from your compatible sensor.
• Suspend feature icon — Indicates that Suspend before low or Suspend on low is turned on while in manual mode. In SmartGuard™ mode, this icon will be replaced with a blue shield .
• Trend arrows — Show the direction and speed at which your sensor glucose values are changing.
• Active insulin time — Shows the amount of insulin from previous boluses that is still active in your body.
• Current basal rate (in manual mode only) — Displays the basal insulin rate currently running when in manual mode.

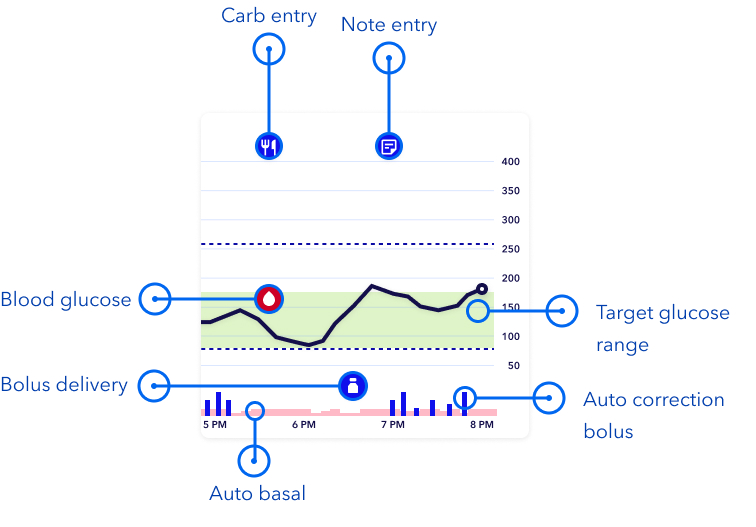

Trend graph in SmartGuard^TM mode

The SmartGuard^TM sensor graph includes the following information:


• Any icon on the graph can be tapped to view more details, such as a bolus delivery. You can pinch or scroll on the graph to view different time frames. The last 24 hours of glucose data can be viewed directly on your app.
• The green shaded area represents the target glucose range of 70-180 mg/dL, and the black line shows your sensor glucose readings over time.
• Boluses are shown as white vials inside dark blue circles.
• Carb entries are shown as white knife and fork symbols inside dark blue circles. These represent any bolus amounts that include a carb entry.
• Blood glucose (BG) appear as a blood drop icon.
• Blue vertical bars at the bottom represent auto correction boluses delivered by SmartGuard mode.
• Temp target is shown as a dark green bar within the graph.



See Manual mode vs SmartGuard^TM mode

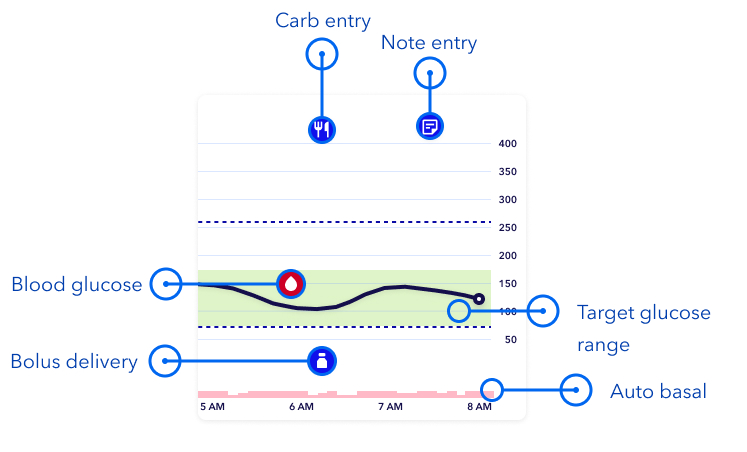

Trend graph in Manual mode

• The sensor graph includes the following information:

• Any icon on the graph can be tapped to view more details, such as a bolus delivery. You can pinch or scroll on the graph to view different time frames. The last 24 hours of glucose data can be viewed directly on your app.
• The green shaded area represents the target glucose range of 70-180 mg/dL, and the black line shows your sensor glucose readings over time.
• Boluses are shown as white vials inside dark blue circles.
• Carb entries are shown as white knife and fork symbols inside dark blue circles. These represent any bolus amounts that include a carb entry.
• Blood glucose (BG) appear as a blood drop icon.



See Manual mode vs SmartGuard^TM mode

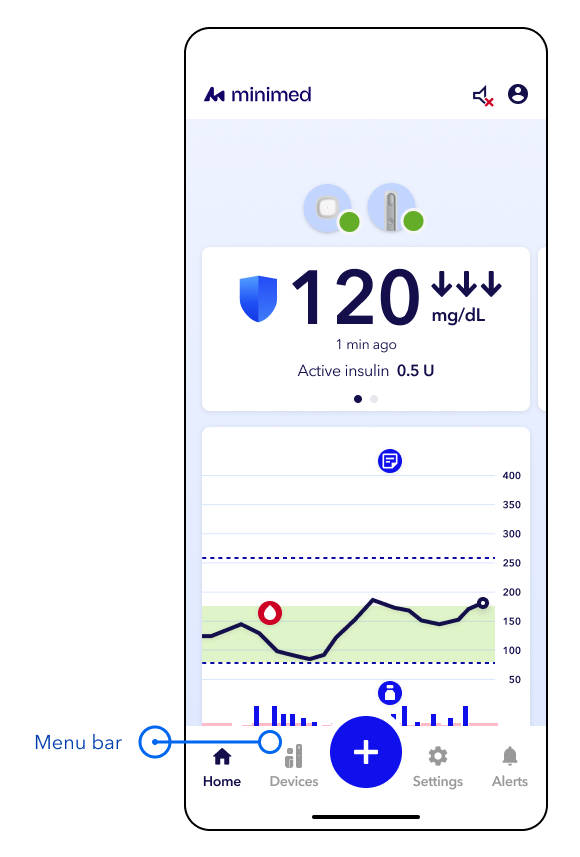

Menu bar

• Home — Tap this to return to the home screen.

• Devices — Tap this to view devices currently paired to the app and the device status. This is one of the places you can go to change your sensor, reservoir, and infusion set.

• Action button —Tap this to access:

  • Bolus calculator
  • Temp basal or Temp target
  • Suspend/Resume
  • Log an event
• Settings — Tap this to access:
  • Insulin settings
  • Alert and glucose settings
  • SmartGuard^TM settings
  • App settings
• Alerts — Tap this to view open alerts and history of alerts.

  See more detail
